Proxmox on OVH Kimsufi

The objective of this guide is to set up a Proxmox at a hoster who gives you only one public IPv4 IP and (officially) a single /128 IPv6 IP on a dedicated server.
The end result should be that all VMs and LXC containers should have their own IPv6 IPs.

Overview

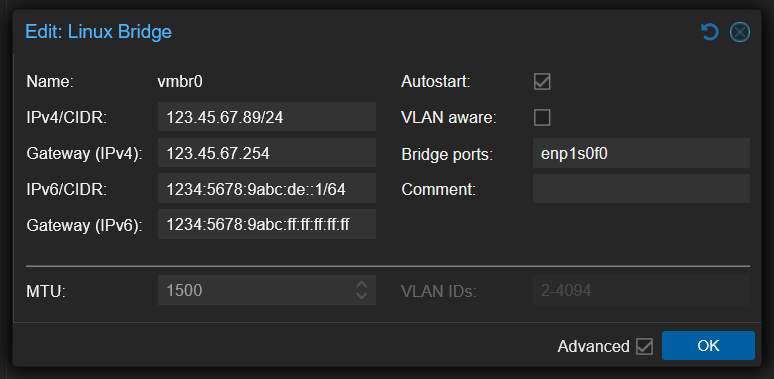

The external network (VMBR0) has a public IPv4 and a public IPv6 available:

IPv4 network: 123.45.67.89/24
IPv6 network: 1234:5678:9abc:de::1/128 # (officially /128, really /64)

The thing is, the IPv6 assigned is still /64 but the rest of the IPs are not directly accessible by the VMs and containers. A quick way to check this is the following script: https://gist.github.com/loayai/8eb1fa456246202a4deece7780725da6

Click to expand code

#!/bin/bash
#===============================================================================
# IPv6 /64 Access Verification for OVH/Kimsufi
#===============================================================================
# Automatically tests if you have full /64 access (not just /128)
# Tests by adding temporary addresses and verifying they work
# Claude Opus 4.5 generated code
#===============================================================================

set -e

# Colors
RED='\033[0;31m'
GREEN='\033[0;32m'
YELLOW='\033[1;33m'
CYAN='\033[0;36m'
NC='\033[0m'
BOLD='\033[1m'

# Configuration
PING_COUNT=2
PING_TIMEOUT=3
TEST_ADDRESSES=5  # How many test addresses to try

#===============================================================================
# Helper Functions
#===============================================================================
print_pass() { echo -e "  ${GREEN}✓${NC} $1"; }
print_fail() { echo -e "  ${RED}✗${NC} $1"; }
print_warn() { echo -e "  ${YELLOW}⚠${NC} $1"; }
print_info() { echo -e "  ${CYAN}ℹ${NC} $1"; }

cleanup() {
    # Remove any test addresses we added
    if [ -n "$CLEANUP_ADDRS" ]; then
        for addr in $CLEANUP_ADDRS; do
            ip addr del "$addr" dev "$INTERFACE" 2>/dev/null || true
        done
    fi
}

trap cleanup EXIT

#===============================================================================
# Detect IPv6 Configuration
#===============================================================================
detect_ipv6_config() {
    echo -e "\n${CYAN}${BOLD}▶ Detecting IPv6 Configuration${NC}"
    echo "────────────────────────────────────────────────────────────────────────"

    # Find interface with global IPv6
    INTERFACE=$(ip -6 addr show scope global | awk -F': ' '/^[0-9]+:/ {print $2}' | head -1)

    if [ -z "$INTERFACE" ]; then
        print_fail "No interface with global IPv6 found"
        echo ""
        echo -e "  ${YELLOW}Your server doesn't have a global IPv6 address configured.${NC}"
        echo ""
        echo "  Possible reasons:"
        echo "  • IPv6 not assigned by your provider"
        echo "  • IPv6 available but not configured yet"
        echo "  • IPv4-only server"
        echo ""
        echo "  Current interfaces:"
        ip -6 addr show | grep -E "^[0-9]+:|inet6" | head -20
        echo ""
        echo "  To check if your provider offers IPv6:"
        echo "  • Check your provider's control panel"
        echo "  • Look for IPv6 settings or network configuration"
        echo "  • Contact support to request IPv6"
        exit 1
    fi
    print_info "Interface: ${BOLD}$INTERFACE${NC}"

    # Get primary IPv6 address and prefix using awk (more reliable than grep -P)
    local addr_line=$(ip -6 addr show dev "$INTERFACE" scope global | grep 'inet6' | head -1)
    PRIMARY_IPV6=$(echo "$addr_line" | awk '{print $2}' | cut -d'/' -f1)
    PRIMARY_PREFIX=$(echo "$addr_line" | awk '{print $2}' | cut -d'/' -f2)

    if [ -z "$PRIMARY_IPV6" ]; then
        print_fail "Could not detect IPv6 address"
        exit 1
    fi
    print_info "Primary IPv6: ${BOLD}$PRIMARY_IPV6/$PRIMARY_PREFIX${NC}"

    # Extract /64 prefix using Python (handles all IPv6 formats correctly)
    PREFIX_64=$(python3 -c "
import ipaddress
addr = ipaddress.IPv6Address('$PRIMARY_IPV6')
# Get the /64 network and extract just the network address
network = ipaddress.IPv6Network((addr, 64), strict=False)
# Print without the prefix length
print(str(network.network_address))
" 2>/dev/null)

    if [ -z "$PREFIX_64" ]; then
        print_fail "Could not calculate /64 prefix"
        exit 1
    fi

    print_info "Your /64 block: ${BOLD}${PREFIX_64}/64${NC}"

    # Get gateway
    GATEWAY=$(ip -6 route show default | awk '/via/ {print $3}' | head -1)
    if [ -n "$GATEWAY" ]; then
        print_info "Gateway: $GATEWAY"
    fi

    # Check current connectivity
    if ping6 -c 1 -W 2 2001:4860:4860::8888 &>/dev/null; then
        print_pass "IPv6 connectivity confirmed"
    else
        print_warn "IPv6 connectivity issues detected"
    fi
}

#===============================================================================
# Generate Test Addresses
#===============================================================================
generate_test_addresses() {
    # Generate test addresses in the /64 using Python for correct formatting
    TEST_ADDRS=()

    for i in $(seq 1 $TEST_ADDRESSES); do
        # Generate address like prefix::7e57:N
        local test_addr=$(python3 -c "
import ipaddress
prefix = ipaddress.IPv6Address('$PREFIX_64')
# Add offset to create test address (0x7e570001, 0x7e570002, etc.)
# This creates addresses like ::7e57:1, ::7e57:2
offset = 0x7e570000 + $i
test = ipaddress.IPv6Address(int(prefix) + offset)
print(str(test))
" 2>/dev/null)

        if [ -n "$test_addr" ] && [ "$test_addr" != "$PRIMARY_IPV6" ]; then
            TEST_ADDRS+=("$test_addr")
        fi
    done

    if [ ${#TEST_ADDRS[@]} -eq 0 ]; then
        print_fail "Could not generate test addresses"
        exit 1
    fi

    print_info "Generated ${#TEST_ADDRS[@]} test addresses"
}

#===============================================================================
# Test Adding Addresses
#===============================================================================
test_add_addresses() {
    echo -e "\n${CYAN}${BOLD}▶ Testing /64 Address Space${NC}"
    echo "────────────────────────────────────────────────────────────────────────"

    CLEANUP_ADDRS=""
    local success_count=0
    local fail_count=0

    local i=0
    local total=${#TEST_ADDRS[@]}

    while [ $i -lt $total ]; do
        local addr="${TEST_ADDRS[$i]}"
        echo -e "\n  Testing ($((i+1))/$total): ${BOLD}$addr${NC}"

        # Check if already exists
        if ip -6 addr show dev "$INTERFACE" | grep -q "$addr"; then
            print_warn "Address already exists, skipping"
            i=$((i+1))
            continue
        fi

        # Try to add the address
        if ip addr add "${addr}/128" dev "$INTERFACE" 2>/dev/null; then
            CLEANUP_ADDRS="$CLEANUP_ADDRS ${addr}/128"
            print_pass "Added to interface"

            # Wait for address to be ready
            sleep 1

            # Verify it's actually there
            if ip -6 addr show dev "$INTERFACE" | grep -q "$addr"; then
                print_pass "Address is active"
                success_count=$((success_count+1))
            else
                print_fail "Address not showing on interface"
                fail_count=$((fail_count+1))
            fi
        else
            print_fail "Could not add address (permission denied?)"
            fail_count=$((fail_count+1))
        fi

        i=$((i+1))
    done

    echo ""
    ADDRS_ADDED=$success_count
    ADDRS_FAILED=$fail_count
}

#===============================================================================
# Test External Reachability
#===============================================================================
test_external_reachability() {
    echo -e "\n${CYAN}${BOLD}▶ Testing Outbound Connectivity from New Addresses${NC}"
    echo "────────────────────────────────────────────────────────────────────────"

    if [ "$ADDRS_ADDED" -eq 0 ]; then
        print_warn "No addresses were added, skipping connectivity test"
        return
    fi

    local reachable_count=0
    local i=0
    local total=${#TEST_ADDRS[@]}

    while [ $i -lt $total ]; do
        local addr="${TEST_ADDRS[$i]}"

        # Check if this address is on the interface
        if ! ip -6 addr show dev "$INTERFACE" | grep -q "$addr"; then
            i=$((i+1))
            continue
        fi

        echo -e "\n  From: ${BOLD}$addr${NC}"

        # Test outbound ping using this source address
        if ping6 -c $PING_COUNT -W $PING_TIMEOUT -I "$addr" 2001:4860:4860::8888 &>/dev/null; then
            print_pass "Outbound connectivity works"
            reachable_count=$((reachable_count+1))
        else
            print_warn "Outbound ping failed (may still work - OVH NDP quirk)"
        fi

        i=$((i+1))
    done

    ADDRS_REACHABLE=$reachable_count
}

#===============================================================================
# Test NDP Behavior
#===============================================================================
test_ndp_behavior() {
    echo -e "\n${CYAN}${BOLD}▶ NDP Proxy Requirement Check${NC}"
    echo "────────────────────────────────────────────────────────────────────────"

    # Check if proxy_ndp is enabled
    local proxy_ndp=$(cat /proc/sys/net/ipv6/conf/all/proxy_ndp 2>/dev/null || echo "0")
    local forwarding=$(cat /proc/sys/net/ipv6/conf/all/forwarding 2>/dev/null || echo "0")

    if [ "$proxy_ndp" = "1" ]; then
        print_pass "NDP proxy is enabled (proxy_ndp=1)"
    else
        print_info "NDP proxy is disabled (will need for VMs)"
    fi

    if [ "$forwarding" = "1" ]; then
        print_pass "IPv6 forwarding is enabled"
    else
        print_info "IPv6 forwarding is disabled (will need for VMs)"
    fi

    # Check for ndppd
    if command -v ndppd &>/dev/null; then
        print_pass "ndppd is installed"
        if systemctl is-active --quiet ndppd 2>/dev/null; then
            print_pass "ndppd service is running"
        fi
    else
        print_info "ndppd not installed (required for VM IPv6)"
    fi

    echo ""
    echo -e "  ${YELLOW}${BOLD}Note on Inbound Traffic:${NC}"
    echo "  OVH uses NDP instead of routing your /64. This means:"
    echo "  • Inbound traffic to VM addresses requires NDP proxy"
    echo "  • Without ndppd, VMs won't receive incoming IPv6 traffic"
    echo "  • Outbound from VMs may work but replies won't return"
}

#===============================================================================
# Summary
#===============================================================================
print_summary() {
    echo -e "\n${CYAN}${BOLD}━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━${NC}"
    echo -e "${CYAN}${BOLD}  SUMMARY${NC}"
    echo -e "${CYAN}${BOLD}━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━${NC}"

    echo ""
    echo -e "  ${BOLD}Your IPv6 Block:${NC}  ${PREFIX_64}/64"
    echo -e "  ${BOLD}Addresses Tested:${NC} ${#TEST_ADDRS[@]}"
    echo -e "  ${BOLD}Successfully Added:${NC} $ADDRS_ADDED"

    if [ $ADDRS_ADDED -gt 0 ]; then
        echo ""
        echo -e "  ${GREEN}${BOLD}✓ /64 ACCESS CONFIRMED${NC}"
        echo -e "  ${GREEN}You can use the full /64 block for your VMs!${NC}"
        echo ""
        echo -e "  ${BOLD}Available range:${NC}"
        echo -e "  ${PREFIX_64} through ${PREFIX_64%::*}:ffff:ffff:ffff:ffff"
        echo ""
        echo -e "${CYAN}${BOLD}━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━${NC}"
        echo -e "${CYAN}${BOLD}  NEXT STEPS FOR PROXMOX${NC}"
        echo -e "${CYAN}${BOLD}━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━${NC}"
        echo ""
        echo -e "  ${BOLD}1. Install NDP Proxy daemon:${NC}"
        echo "     apt install ndppd"
        echo ""
        echo -e "  ${BOLD}2. Configure /etc/ndppd.conf:${NC}"
        echo "     ┌────────────────────────────────────────────────────┐"
        echo "     │ route-ttl 30000                                    │"
        echo "     │ proxy vmbr0 {                                      │"
        echo "     │   router yes                                       │"
        echo "     │   timeout 500                                      │"
        echo "     │   ttl 30000                                        │"
        echo "     │   rule ${PREFIX_64}/64 {"
        echo "     │     static                                         │"
        echo "     │   }                                                │"
        echo "     │ }                                                  │"
        echo "     └────────────────────────────────────────────────────┘"
        echo ""
        echo -e "  ${BOLD}3. Enable IPv6 forwarding:${NC}"
        echo "     echo 1 > /proc/sys/net/ipv6/conf/all/forwarding"
        echo ""
        echo "     For persistence, add to /etc/sysctl.conf:"
        echo "     net.ipv6.conf.all.forwarding = 1"
        echo ""
        echo -e "  ${BOLD}4. Start ndppd:${NC}"
        echo "     systemctl enable --now ndppd"
        echo ""
        echo -e "  ${BOLD}5. VM Configuration:${NC}"
        echo "     • Bridge: vmbr0"
        echo "     • IPv6: Any address from ${PREFIX_64}/64"
        echo "     • Gateway: ${PRIMARY_IPV6} (Proxmox host)"
        echo ""
        echo -e "  ${BOLD}Example VM config:${NC}"
        echo "     IPv6 Address: ${PREFIX_64%::*}::100/64"
        echo "     IPv6 Gateway: ${PRIMARY_IPV6}"
        echo ""
    else
        echo ""
        echo -e "  ${RED}${BOLD}✗ Could not verify /64 access${NC}"
        echo ""
        echo -e "  ${YELLOW}${BOLD}IMPORTANT: Not all Kimsufi servers have /64 routed!${NC}"
        echo ""
        echo "  Manual verification steps:"
        echo "  1. Ensure your host has IPv6 working first (ping6 google.com)"
        echo "  2. Try changing your address from ::1/128 to ::2/64"
        echo "  3. If you can still reach IPv6 addresses, you have /64 access"
        echo "  4. If not - bad server. Request refund and get a new one."
        echo ""
        echo "  Make sure you're running as root: sudo $0"
    fi

    echo ""
}

#===============================================================================
# Main
#===============================================================================
main() {
    echo -e "${CYAN}${BOLD}"
    echo "━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━"
    echo "  IPv6 /64 Access Verification"
    echo "━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━"
    echo -e "${NC}"

    # Check root
    if [ "$EUID" -ne 0 ]; then
        print_fail "This script must be run as root"
        echo "  Run: sudo $0"
        exit 1
    fi

    # Check for Python3 (required for reliable IPv6 parsing)
    if ! command -v python3 &>/dev/null; then
        print_fail "python3 is required for IPv6 address parsing"
        echo "  Install with: apt install python3"
        exit 1
    fi

    detect_ipv6_config
    generate_test_addresses
    test_add_addresses
    test_external_reachability
    test_ndp_behavior
    print_summary
}

main "$@"

So if the script works, it'll give you the steps needed to setup additional IPs. Lets go through them one by one.

Change Proxmox node IPv6 subnet

First, change your server's IPv6 IP subnet from /128 to /64 in proxmox UI, usually for vmbr0

Add the following content, replace 1234:5678:9abc:de:: with your server's IPv6 IP:

Setup ndppd proxy

This is used as we cant use the provided OVH gateway as a proxy. So we setup ndppd to use our dedicated server as a proxy.

apt update
apt install ndppd nano

Configure it by creating/editing: /etc/ndppd.conf

nano /etc/ndppd.conf

Add:

route-ttl 30000

proxy vmbr0 {
  router yes
  timeout 500
  ttl 30000

  rule 1234:5678:9abc:de::/64 {
    static
  }
}

Then allow IPv6 forwarding:

nano /etc/sysctl.d/99-ipv6-routing.conf

Add:

net.ipv6.conf.all.forwarding = 1

Apply these sysctl changes:

sysctl --system

Finally enable ndppd to start on boot and start it now as well:

systemctl enable --now ndppd

That's all changes needed from proxmox.

Add IPv6 only VM or LXC container:

Create a VM or LXC container as normal, using vmbr0 as network bridge. Then when setting up IPv6 for the VM/LXC, use the following settings:

IP: 1234:5678:9abc:de::xxx/64
Gateway: 1234:5678:9abc:de::1

Note:
We are using our proxmox node's IPv6 address as gateway on vmbr0 which is the default network bridge.
We can use any IPv6 IP starting with the first 4 parts of the host's IPv6 IP. For example, this is a valid IP for our VM/LXC container:
1234:5678:9abc:de:1234:5678:90ab:cde0
